U Bolt

U Bolts, also known as U clamps, are versatile and essential fasteners used across various industries for securing and supporting structures. They are particularly popular in electrical power lines, pole lines, and concrete installations. In this comprehensive guide, we will delve into the world of U Bolts, exploring their types, applications, manufacturing processes, and the reasons why they are a preferred choice for many professionals.

What are U Bolt?

U bolt clamps, characterized by their U-shaped configuration and threaded ends, are a crucial element in the fastening systems used across various industries. These clamps are specifically designed to offer a secure and stable connection for a range of applications, including the support of electric power lines, the reinforcement of concrete structures, and the anchoring of pole lines.

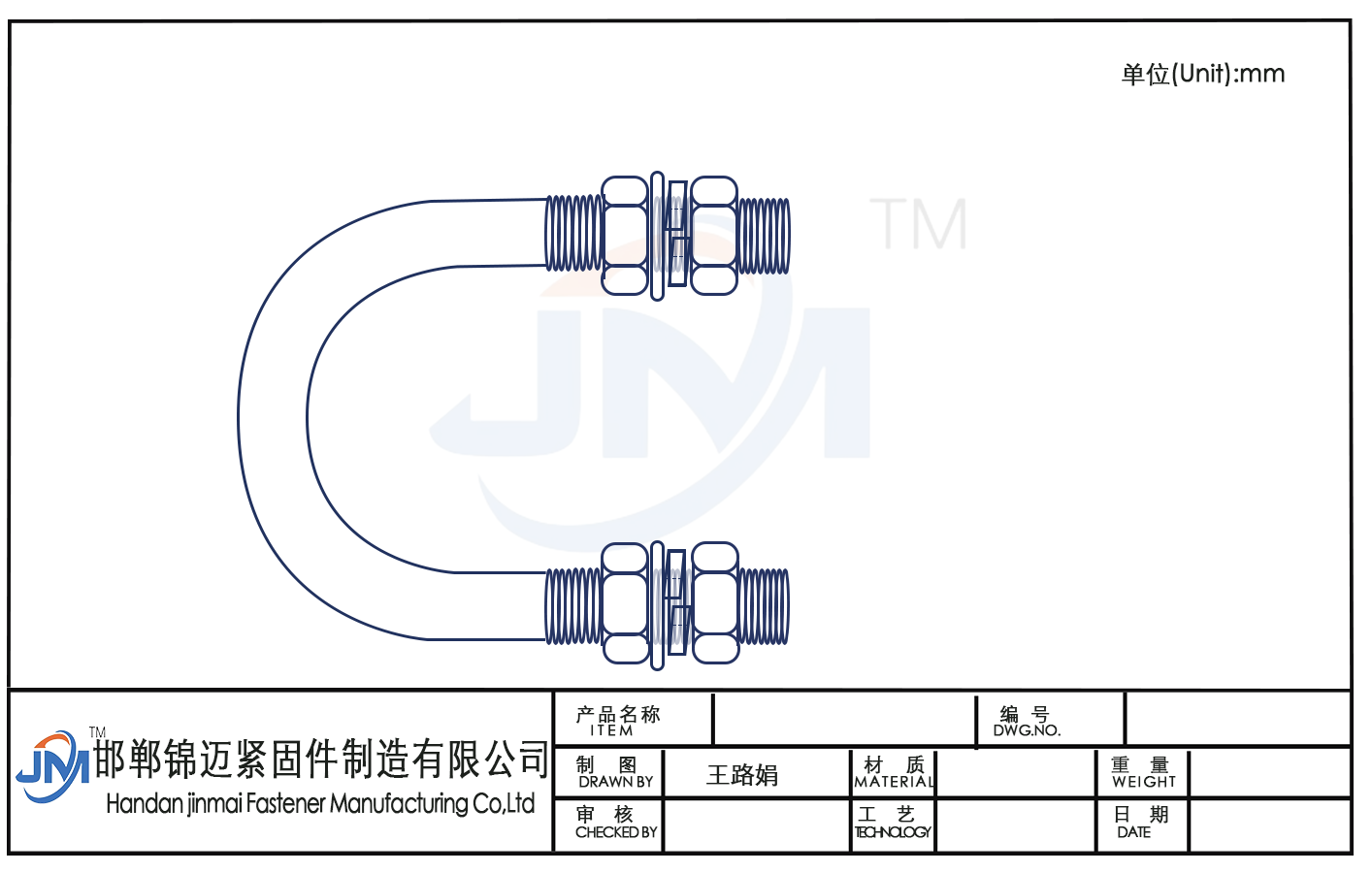

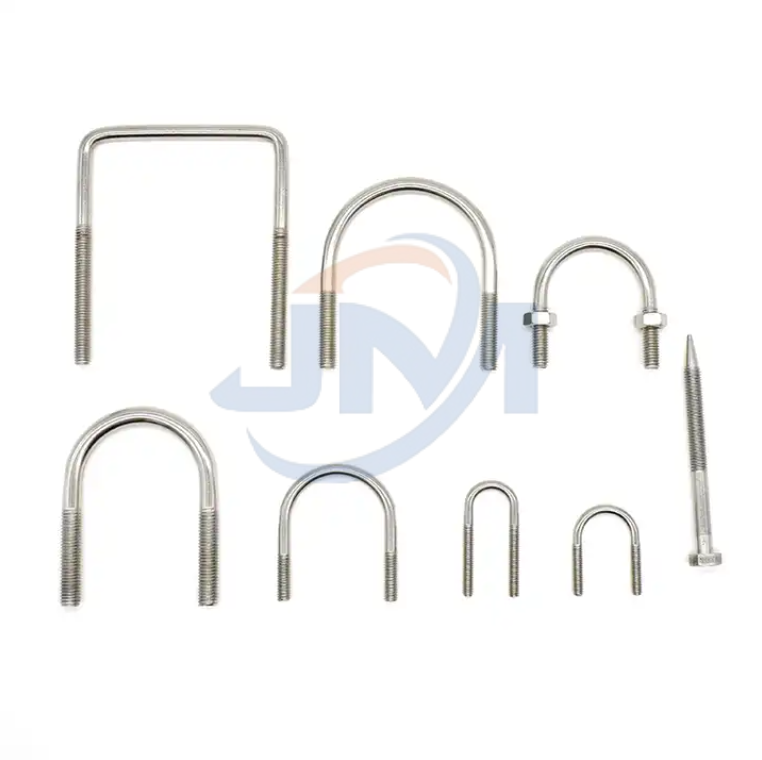

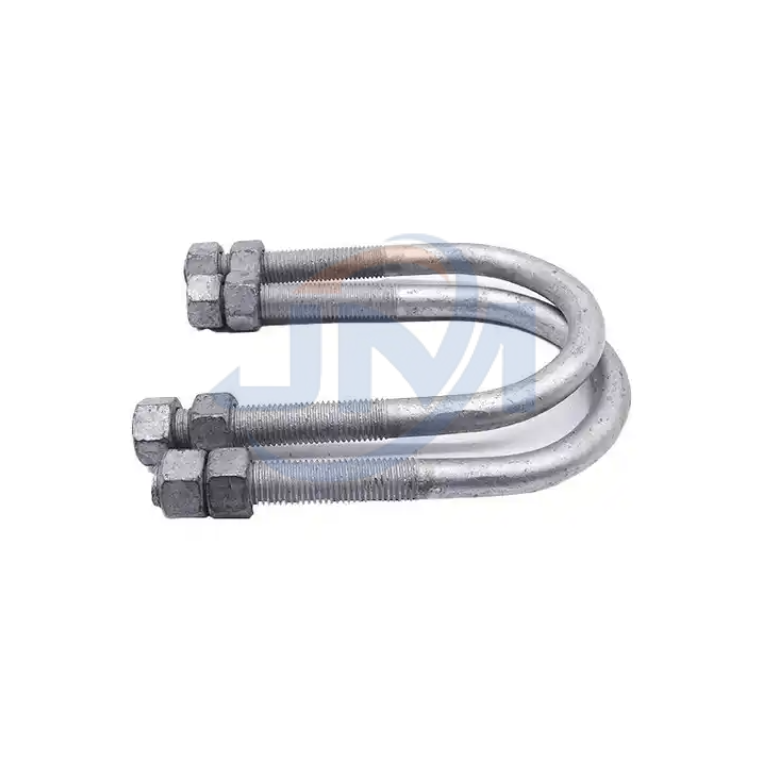

U bolt

• Global Variations in U Bolt Design:

As you traverse different countries, you'll notice a spectrum of U bolt designs and types, each tailored to meet the specific requirements and standards of local infrastructure. This diversity is a testament to the adaptability of U bolt clamps to various environmental conditions and engineering challenges.

• Size and Manufacturing:

The dimensions of U bolts span a range of sizes, with common diameters including 5/8 inch, ¾ inch, and ½ inch screws. These dimensions are meticulously crafted using rolling machines, which impress the threads onto both ends of the U bolt. This manufacturing process ensures a uniform and precise thread pattern, critical for the clamp's functionality and reliability.

• Assembly and Nuts:

A complete U bolt assembly is typically accompanied by a complement of square nuts or hex nuts, which can be two or four in number. These nuts are threaded onto the ends of the U bolt, providing a secure and adjustable fastening mechanism. The inclusion of these nuts is essential for the assembly process, allowing for a tight and stable connection that can be easily adjusted as needed.

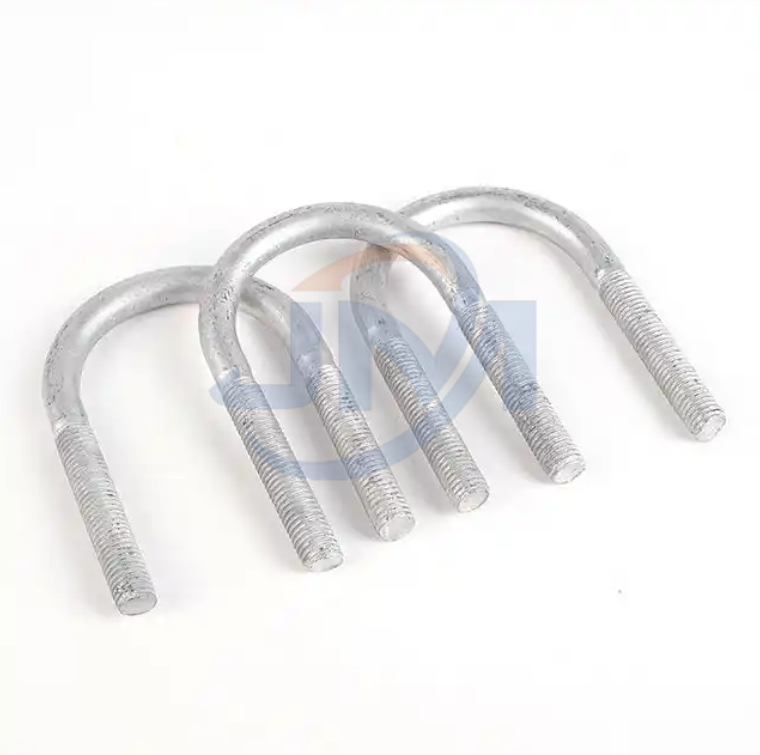

U Bolt

Main Uses of U Bolt

Electrical Power Infrastructure: U Bolts are extensively used in the electrical power sector to secure electrical poles, crossarms, and other related structures. They help in fastening insulators, transformers, and other equipment to the poles, ensuring a stable and safe electrical distribution system.

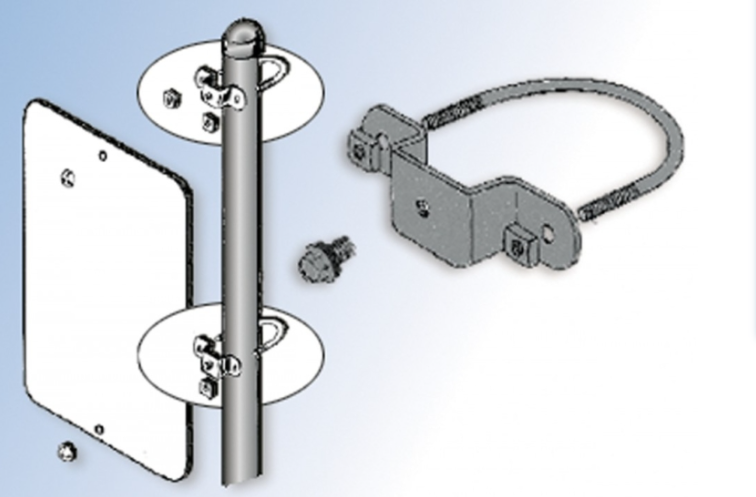

u bolt bracket applications

 Types of U Bolt

U Bolts come in a variety of types, each designed to cater to specific applications and requirements. Here are some common types of U Bolts:

• Standard U Bolts: These are the most common type, featuring a simple U-shaped design with threaded ends. They are used for general fastening purposes and can be found in various sizes and materials.

• Square U Bolts: Also known as square bend U bolts, these have 90-degree bends at each end, making them suitable for applications where a square shape is needed, such as securing crossarms on utility poles.

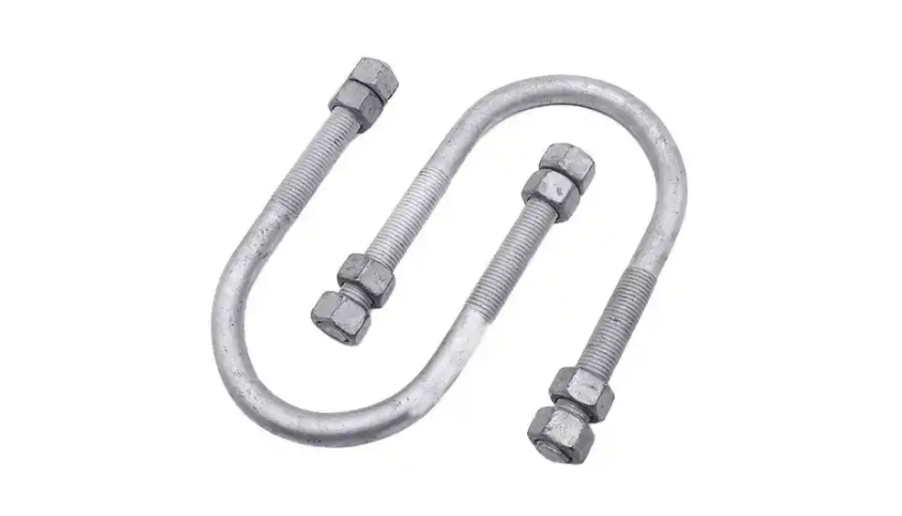

U bolt

Each type of U Bolt is chosen based on the specific requirements of the application, including the material being fastened, the environment in which it will be used, and the level of tension or load that needs to be supported. The correct type of U Bolt ensures a secure and reliable connection, contributing to the overall safety and functionality of the structure or system it is used in.

Technical Specification of U Bolt

The technical specifications of U Bolts are essential for ensuring they meet the requirements of their intended applications. Here are the key specifications to consider:

• Material: U Bolts are typically made from carbon steel, stainless steel, or other metals that offer the necessary strength and durability. The material choice affects the bolt's resistance to corrosion, its ability to withstand environmental conditions, and its overall strength.




• Diameter: The diameter of the U Bolt is crucial for determining its load-bearing capacity. Common diameters include 1/2 inch, 5/8 inch, 3/4 inch, and larger sizes, depending on the application's needs.




• Thread Size and Pitch: The thread size and pitch (the distance between threads) are critical for the bolt's ability to grip and secure the materials it is fastening. Threads can be coarse or fine, and the specification should match the requirements of the installation.




• Length: The overall length of the U Bolt, including the legs and the U-shaped body, must be appropriate for the application. This ensures that the bolt can properly engage with the materials and provide a secure fit.




• Thread Length: The length of the threaded portion of the U Bolt is important for ensuring adequate engagement with the nuts and the materials being fastened.




• Coating: Many U Bolts undergo a surface treatment such as hot-dip galvanization, which provides a protective coating against corrosion. This is particularly important for outdoor applications or in environments where moisture is present.




• Load Capacity: The load capacity of a U Bolt is determined by its material, diameter, and thread design. It's essential to select a bolt with a load capacity that exceeds the maximum expected load in the application.




• Tensile Strength: This is a measure of the maximum tensile stress that the U Bolt can withstand before failure. It's a critical specification for applications where the bolt will be subjected to significant tension.




• Shear Strength: The shear strength of a U Bolt is its ability to resist forces that could cause it to slide along its axis. This is important for applications where the bolt may be subjected to lateral forces.




• Standards and Certifications: U Bolts may need to comply with specific industry standards or certifications, such as ASTM (American Society for Testing and Materials), DIN (Deutsches Institut für Normung), or ISO (International Organization for Standardization) standards.




• Nuts and Washers: The U Bolt assembly often includes nuts and washers, which should also be specified according to their size, material, and thread type to ensure a proper fit and secure fastening.

Type of Material

The type of material used in the construction of U Bolts plays a significant role in determining their strength, durability, and suitability for various applications. Here are some common materials used for U Bolts:

• Carbon Steel: This is the most common material for U Bolts due to its strength and affordability. Carbon steel U Bolts can be further enhanced through processes like heat treatment to improve their mechanical properties.

•


• Alloy Steel: Alloy steel U Bolts are made by adding other elements to carbon steel to improve its properties, such as increased strength, hardness, or resistance to wear and corrosion. They are used in applications that require high-performance fasteners.

•


• Galvanized Steel: This is carbon steel that has been coated with a layer of zinc to protect against rust and corrosion. Galvanized U Bolts are used in applications where the bolt will be exposed to the elements but do not require the high corrosion resistance of stainless steel.

The choice of material for U Bolts depends on the specific requirements of the application, including the environment, the loads involved, and the need for corrosion resistance. It's important to select the appropriate material to ensure the U Bolts perform reliably and safely in their intended use.

Tensile strength

For U Bolts, tensile strength is particularly important because it determines the bolt's ability to hold together two or more objects under tension without stretching or breaking. The tensile strength of a U Bolt is influenced by several factors:

Material: Different materials have inherent tensile strengths. For example, stainless steel generally has a lower tensile strength than high-strength alloy steel but offers better corrosion resistance.

• Diameter: The diameter of the U Bolt affects its tensile strength. Larger diameter bolts can handle more load before failing compared to smaller ones.

• Thread Design: The thread design, including the thread pitch and the thread's mechanical strength, can influence the tensile strength of a U Bolt.

• Heat Treatment: Heat treatment processes can enhance the tensile strength of U Bolts by altering the microstructure of the material.

• Coating: Coatings like galvanization can protect the U Bolt from corrosion, which can weaken the material and reduce its tensile strength over time.

• Manufacturing Process: The manufacturing process, including forging, rolling, or machining, can affect the grain structure and internal stresses within the U Bolt, which in turn affects its tensile strength.

Quality compliance – ISO 1461

ISO 1461:2022 is an international standard that specifies the general properties of hot dip galvanized coatings and the test methods for these coatings applied to fabricated iron and steel articles, including certain castings. The standard is relevant for U bolts that are galvanized as part of their manufacturing process to provide corrosion protection.

Here are some key points from ISO 1461:2022 that relate to quality compliance:

• Scope: The standard applies to coatings applied by dipping fabricated iron and steel articles in a zinc melt containing not more than 2% of other metals. It does not apply to continuously hot dip galvanized sheet, wire, woven or welded mesh products, tube and pipe hot dip galvanized in automatic plants, or products for which specific standards exist.

• General Requirements: The standard outlines the requirements for the appearance, thickness, adhesion, and other properties of the galvanized coating. It also provides guidelines for the renovation of uncoated or damaged areas.

• Coating Thickness: The standard specifies the minimum coating thickness required for various categories of galvanized items. The thickness is a critical factor in ensuring the corrosion resistance of the galvanized coating.

• Coating Appearance: The standard describes the acceptable appearance of the galvanized coating, which should be smooth, uniform, and continuous. It also addresses various defects that can occur during the galvanizing process and their acceptability.

• Adhesion: The standard includes requirements for the adhesion of the galvanized coating to the steel substrate, which is essential for the coating's protective performance.

• Acceptance Criteria: ISO 1461:2022 provides criteria for accepting or rejecting galvanized products based on the coating's properties and any defects present.

• Sampling and Inspection: The standard references other ISO documents, such as ISO 2859, for sampling procedures and inspection by attributes, which are used to determine the quality of the galvanized coating.

• Safety and Process Requirements: Annex B of the standard provides safety and process requirements for hot dip galvanizing, ensuring that the process is carried out in a manner that meets quality standards.

• Declaration of Compliance: The standard requires a declaration of compliance, which means that manufacturers must provide evidence that their products meet the specified requirements.

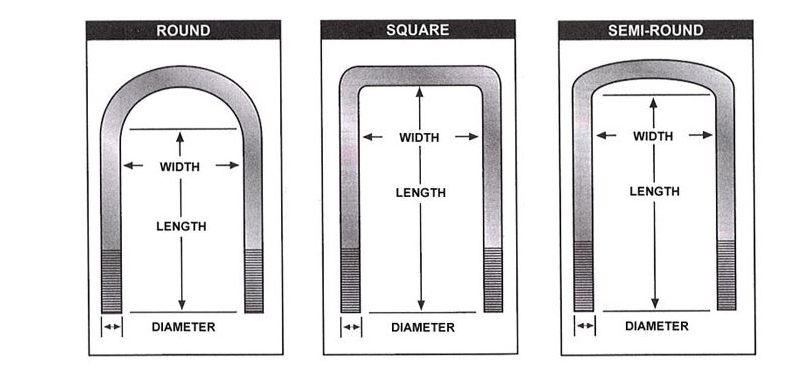

Dimension

Dimensions of U Bolts are critical specifications that determine their suitability for various applications. Here are the key dimensions to consider when selecting U Bolts:

• Overall Length: This is the total length of the U Bolt from one end to the other, passing through the U-shaped bend. It must be long enough to accommodate the thickness of the materials being fastened and to allow for proper engagement with nuts.

• Leg Length: The leg length is the distance from the base of the U bend to the end of the bolt. This dimension is important for ensuring that the U Bolt can span the gap between the two surfaces or objects it is meant to secure.

• Bend Radius: The radius of the U bend determines the curvature of the bolt. This dimension is crucial for applications where the U Bolt must fit around a specific shape or size of an object.

• Diameter: The diameter of the U Bolt is the width of the U-shaped body at its widest point. It must be compatible with the size of the nuts and the threaded holes in the materials being fastened.

• Thread Length: This is the length of the threaded portion of the U Bolt. It should be sufficient to provide a secure grip when threaded into nuts or threaded holes.

• Thread Pitch: The thread pitch, or the distance between each thread, affects the tightness of the fit when the U Bolt is tightened. A coarser pitch has fewer threads per inch, while a finer pitch has more threads, providing a tighter fit.

• Thread Diameter: Also known as the thread size, this dimension is the diameter of the screw threads. It must match the thread size of the nuts and the threaded holes in the materials.

• Inside Width (IW): For U Bolts designed to clamp around a specific object, the inside width is the distance between the inner edges of the U bend. This dimension should be slightly less than the object's width to ensure a snug fit.

• Inside Height (IH): The inside height is the distance from the bottom of the U bend to the top of the bend. This dimension is important for applications where the U Bolt must fit within a specific space.

• Nut and Washer Dimensions: The dimensions of the accompanying nuts and washers must be compatible with the U Bolt's thread size and length to ensure a proper fit and secure fastening.

When specifying U Bolts, it's essential to provide accurate dimensions to ensure the bolts will fit the intended application and provide the necessary clamping force.

The process of Making a U bolt

The manufacturing process of a U bolt involves several key steps to ensure the final product is both functional and durable. Here's a detailed overview of how U bolts are typically made:

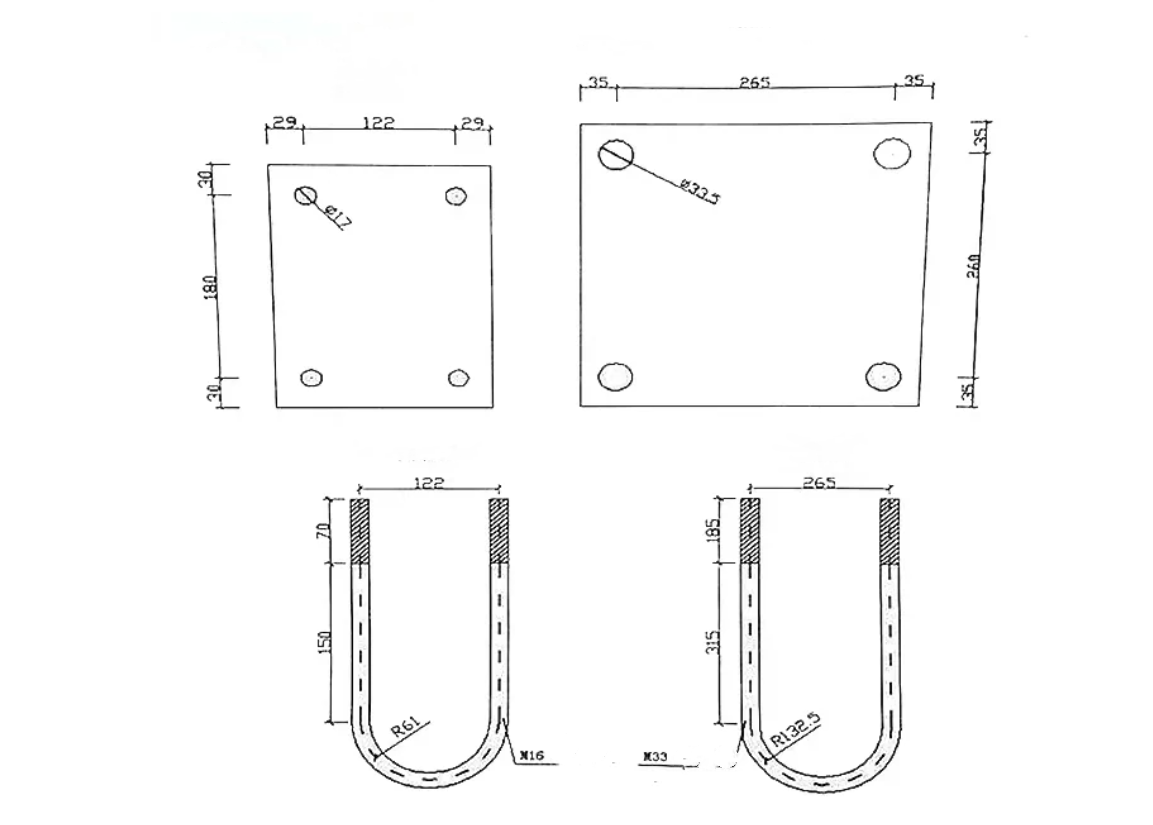

U bolt

1. Material Selection: The first step is choosing the appropriate material, such as carbon steel, stainless steel, or galvanized steel. The choice depends on the required strength, corrosion resistance, and application of the U bolt.

2. Billet Preparation: A metal billet, or a solid piece of metal, is prepared as the starting material. The billet is cut to the approximate length of the finished U bolt, including the threaded ends.

3. Hot Forging or Cold Forging: The billet is then forged to shape the U bolt. Hot forging is performed at high temperatures, which makes the metal more pliable and easier to shape. Cold forging is done at or near room temperature and can result in a stronger final product due to the work hardening of the metal.

4. Thread Rolling: After the U shape is formed, the threads are created on both ends of the U bolt. Thread rolling is a cold-forming process that impresses the threads into the metal without reducing its diameter. This process enhances the strength of the threads and the overall bolt.

5. Cutting and Trimming: Any excess material from the forging process is removed, and the U bolt is cut to its final length. This ensures that the U bolt fits within the required dimensions for its application.

6. Heat Treatment: To improve the mechanical properties of the U bolt, it may undergo heat treatment processes such as quenching and tempering. This can increase the bolt's tensile strength and hardness, making it more durable and reliable.

7. Cleaning: The U bolt is cleaned to remove any scale, burrs, or other residues from the forging and machining processes. This can involve pickling, sandblasting, or other cleaning methods.

8. Coating: To protect the U bolt from corrosion, it may be coated with a layer of zinc through a process called galvanization. This can be done using hot-dip galvanization, where the U bolt is submerged in molten zinc, or using other coating methods like electroplating or powder coating.

9. Inspection and Quality Control: Each U bolt is inspected for defects, such as inclusions, or improper thread formation. This ensures that the bolts meet the required specifications for dimensions, thread quality, and overall integrity.

The manufacturing process of U bolts is designed to produce a fastener that is strong, reliable, and capable of withstanding the demands of various applications.

How to Install U bolt?

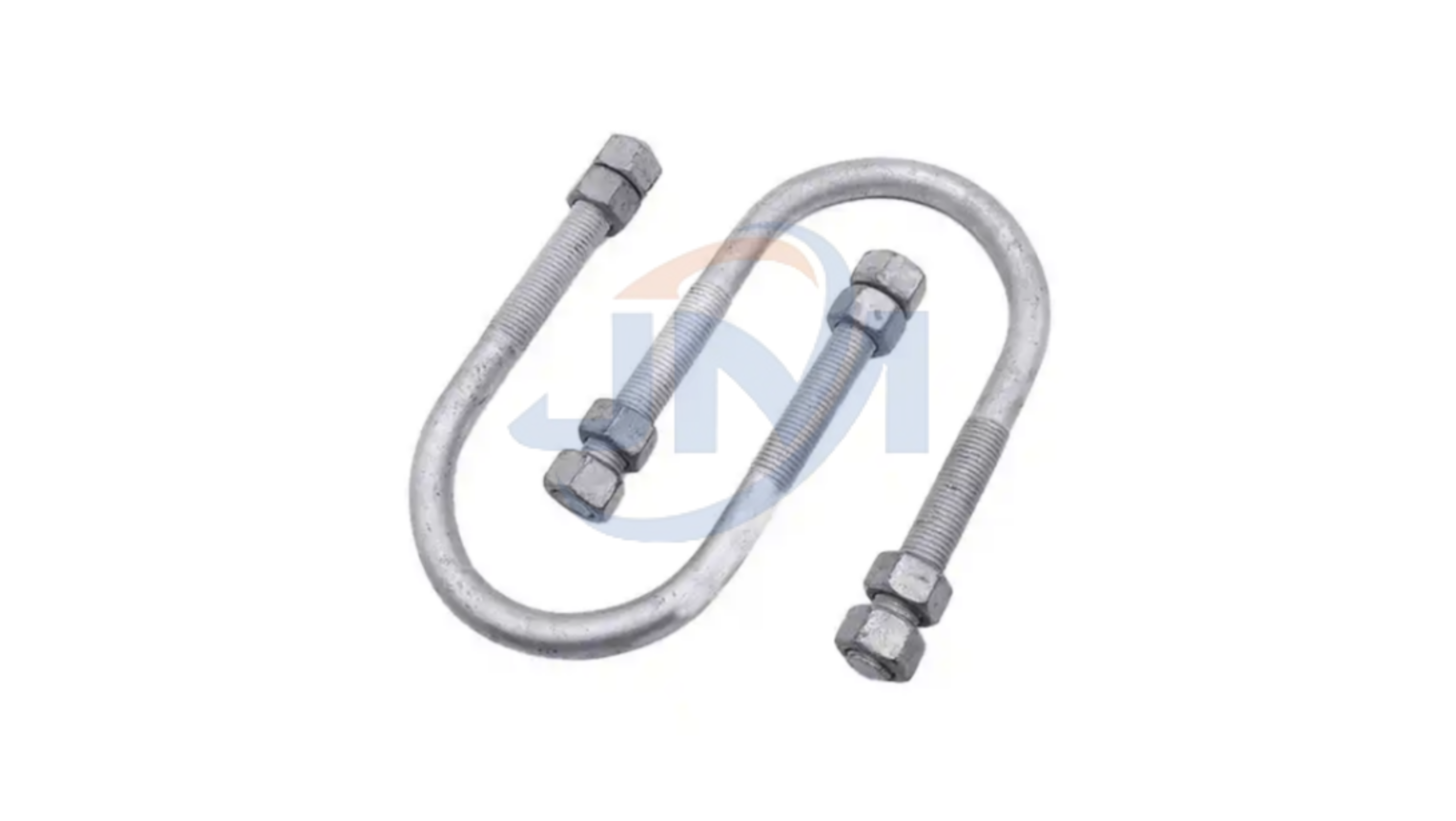

                U Bolt

• Insert the U Bolt: Place the U bolt into the holes so that the U-shaped portion fits around the object or structure you are securing. The threaded ends should protrude through the holes.

• Attach Nuts: Place the appropriate nuts onto the threaded ends of the U bolt. You may need to use a wrench or a socket wrench to tighten the nuts securely. If the U bolt is being used in a tight space, you might need to use an offset wrench or a ratchet with an extension.

• Tighten the U Bolt: Gradually tighten the nuts until the U bolt is snug against the structure or object. Be careful not to overtighten, as this can cause the U bolt to bend or the threads to strip.

• Check Alignment: Ensure that the U bolt is properly aligned and that the structure or object it is securing is stable. If necessary, make adjustments by loosening and retightening the nuts.

• Final Tightening: Once the U bolt is properly aligned and the structure is stable, tighten the nuts to their final position. This may require additional force, so use appropriate tools and safety precautions.

• Inspect the Installation: After the installation is complete, inspect the U bolt and the secured structure to ensure everything is in place and there are no signs of damage or misalignment.

• Maintenance: Regularly check the U bolt installation for any signs of wear, corrosion, or loosening. Tighten the nuts as needed to maintain the integrity of the connection.

Frequently Asked Questions (FAQs)

Conclusion

U Bolts are a versatile and essential type of fastener used across a wide range of industries and applications. Their unique U-shaped design and threaded ends make them suitable for securing various structures and components, particularly in electrical power lines, construction, and transportation. The selection of the right U Bolt involves considering factors such as material, size, thread specifications, and the environmental conditions of the application.

Proper installation of U Bolts is crucial for their performance and the safety of the structures they support. This involves accurate measurement, appropriate hole drilling, correct alignment, and sufficient tightening without causing damage to the bolt or the materials it is fastening. Regular inspection and maintenance are also important to ensure the longevity and reliability of U Bolts, especially in critical applications.
