Galvanized pigtail eye hook bolt manufacturer supply

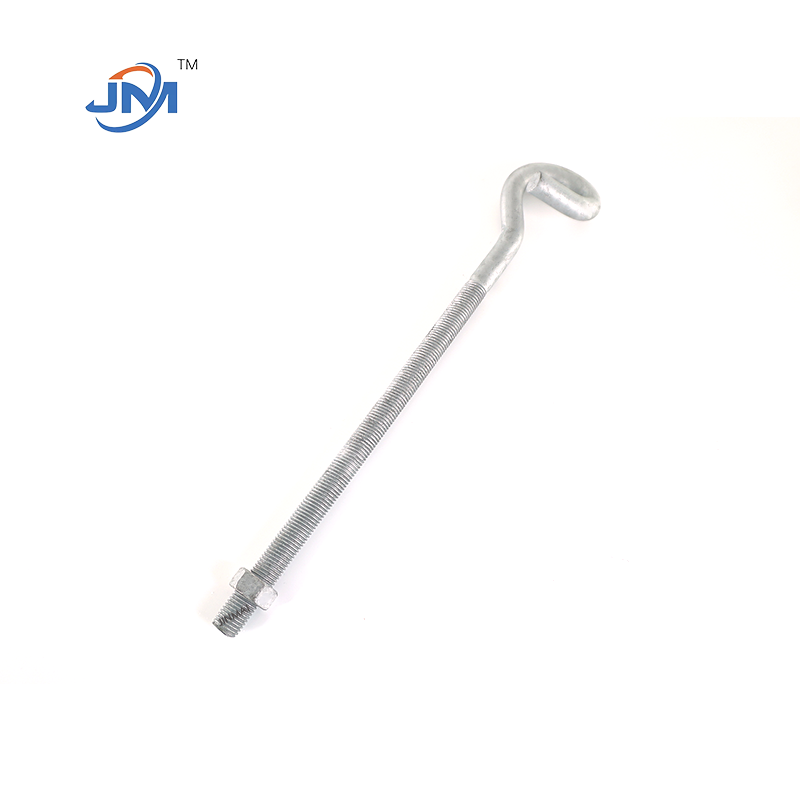

Pigtail eye hook bolt

In the power system, plays the role of pulling wires, and is generally used to receive aerial bundled cables across suspension clamps and terminal clamps. Because its head is shaped like a pigtail, it is also called pigtail eye bolt, pigtail hook, pigtail screw, pigtail hook screw or pigtail fastener. As shown in the figure, it is made of carbon steel forging and hot-dip galvanized to increase its aesthetics and durability. (The surface treatment can also be electro-galvanized according to customer needs)

How to choose the size?

Common sizes of Pigtail eye bolts include: M16 bolts with a diameter of 16mm and a standard pitch of 2mm; M20 bolts with a diameter of 20mm and a standard pitch of 2.5mm, M22, M24, etc. We can provide a variety of sizes to meet customer customization needs.

The following figure is a product drawing. If you need customization, you can provide the following data for drawing production.

How to install?

First, insert the pre-drilled hole into the bolt;

Second, fix it with a nut.

Third, after installation, use two hexagonal nuts and washers to fasten one end to the column.

The remaining pigtail end is used to attach the hanging clip.

About US:

1.Handan Jinmai Fastener Manufacturing Co., Ltd. was established in 2010 and is located in Yongnian District, Handan City, Hebei Province, China's largest distribution center for standard parts. It specializes in the production of various power hardware fasteners.

2.We have a research and development department that can design drawings and customize products according to customer needs;

3.Some of our products have passed ISO9001 product quality management system certification, strictly control product quality, and win customer trust.

4.Our products are exported to more than 20 countries including Africa, Asia, and America, and have many years of stable domestic and foreign customers.

5.For customized products, the minimum order quantity is 2,000 pieces, and the delivery time is 15 days, which can complete product production quickly and efficiently.

Contact me if you want to know more,my phone:+8613831007495
