The descripition of the Spiral anti vibration damper

       The damper is capable of supporting the damper and preventing damage or chafing of the conductor during erection or continued operation. The clamp has a smooth and permanent grip to keep the damper in position on the conductor without damaging the strands or causing premature fatigue failure of the conductor under the clamp. The clamp groove is in uniform contact with the conductor over the entire clamping surface except for the rounded edges. The groove of the clamp body and clamp cap is smooth and free from projections, grit, or other materials which could cause damage to the conductor when the clamp is installed. Clamping bolts are provided with self-locking nuts and are designed to prevent corrosion of threads or loosening in service.

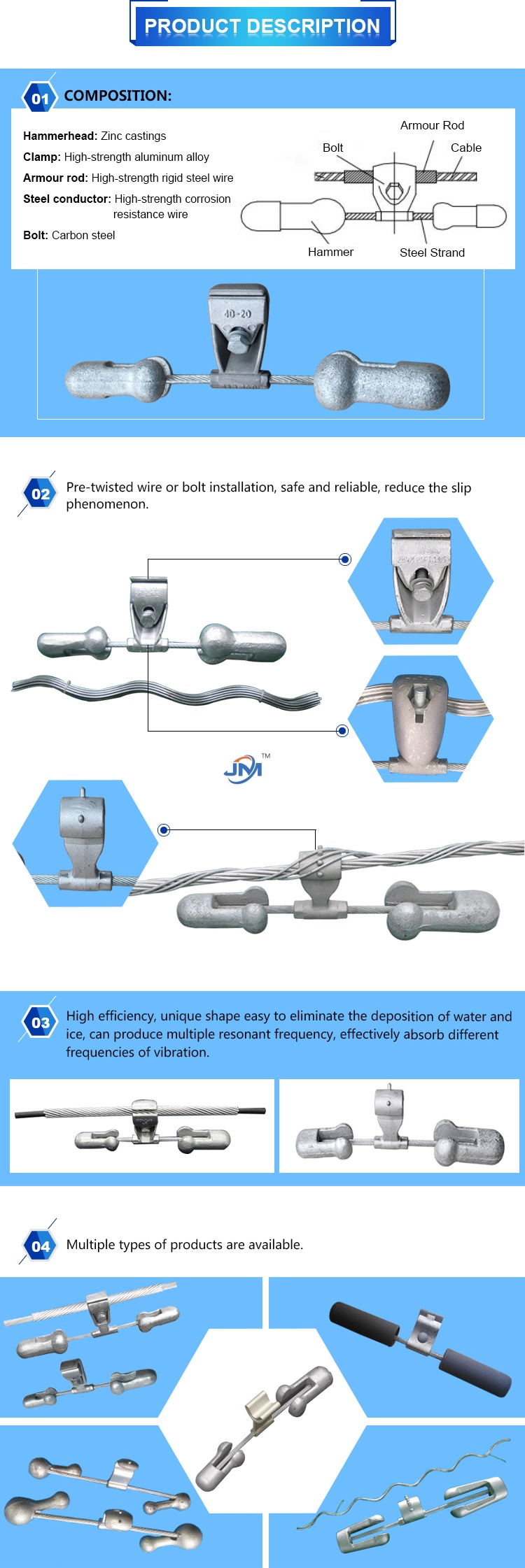

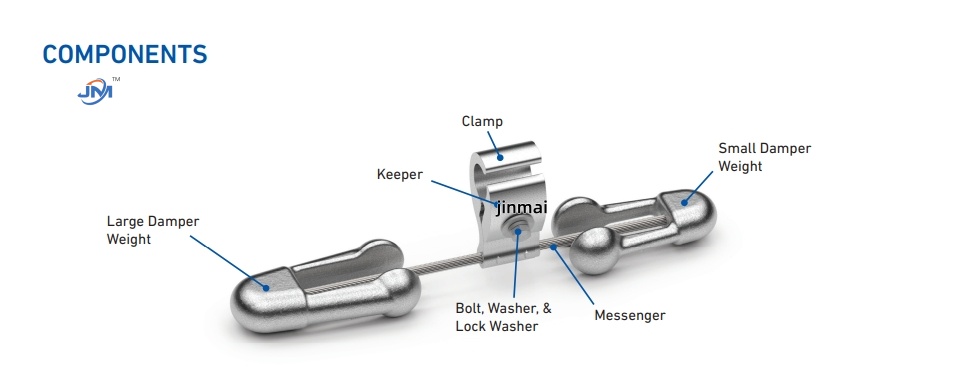

What is its structure?

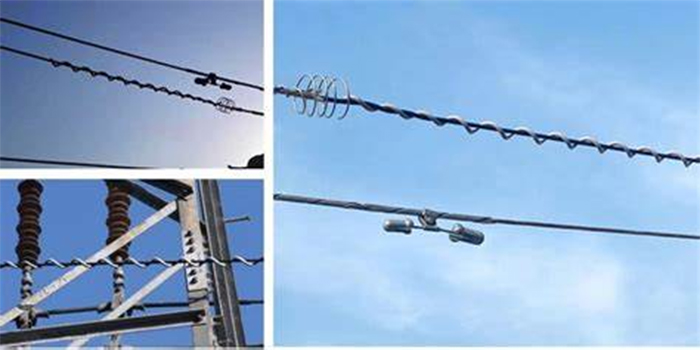

How is it used?

you can see the below picture

       Clamp Type Vibration Damper for ADSS/OPGW cables, withtuning fork structure of Damper Weight,  is validated byChina Electric Power Research Institute that there are four frequency between 5~150HZ, and its vibration range is wider than FG Damper or FD Damper. Plenty Vibration Dampers have been installed on ADSS cables.Considers many input variables specifi c to the individual cable, such as its construction, design, and local operating conditions.

      Weclome to contact me to know more and choose the right type you need!My email is [email protected],whatsapp/wechat is +8613831007495!
