Adjustable stay rod assembly hot dip galvanized

(一）Stay rod assembly descriptation

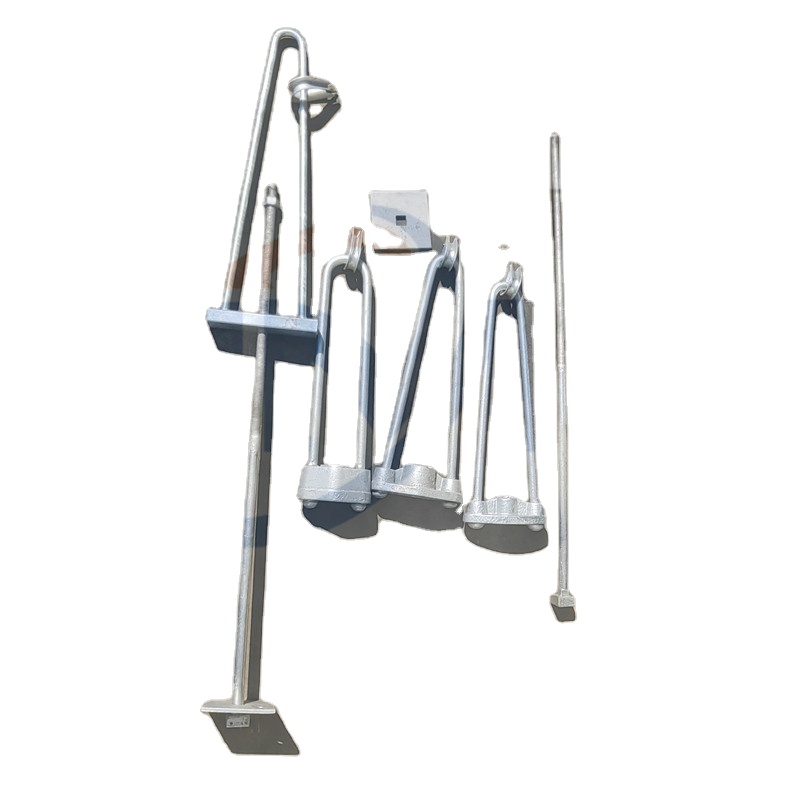

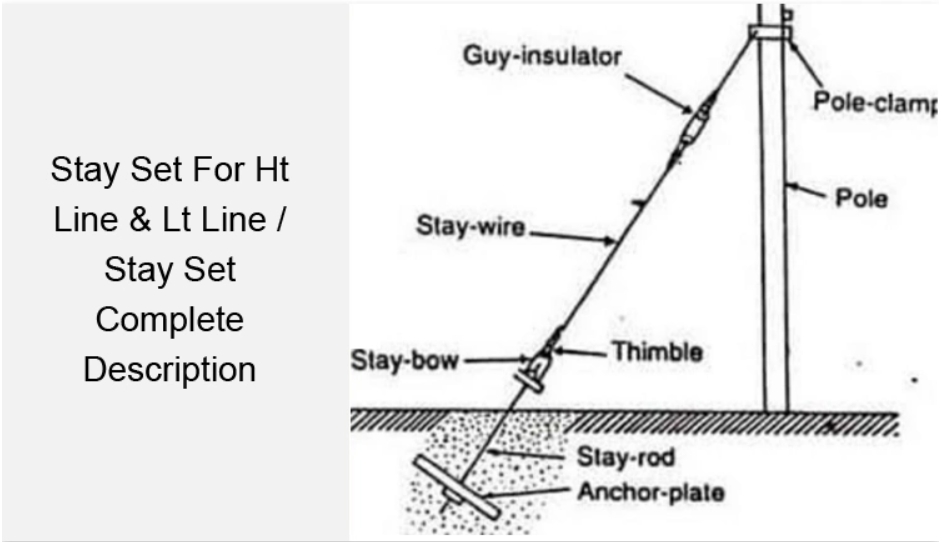

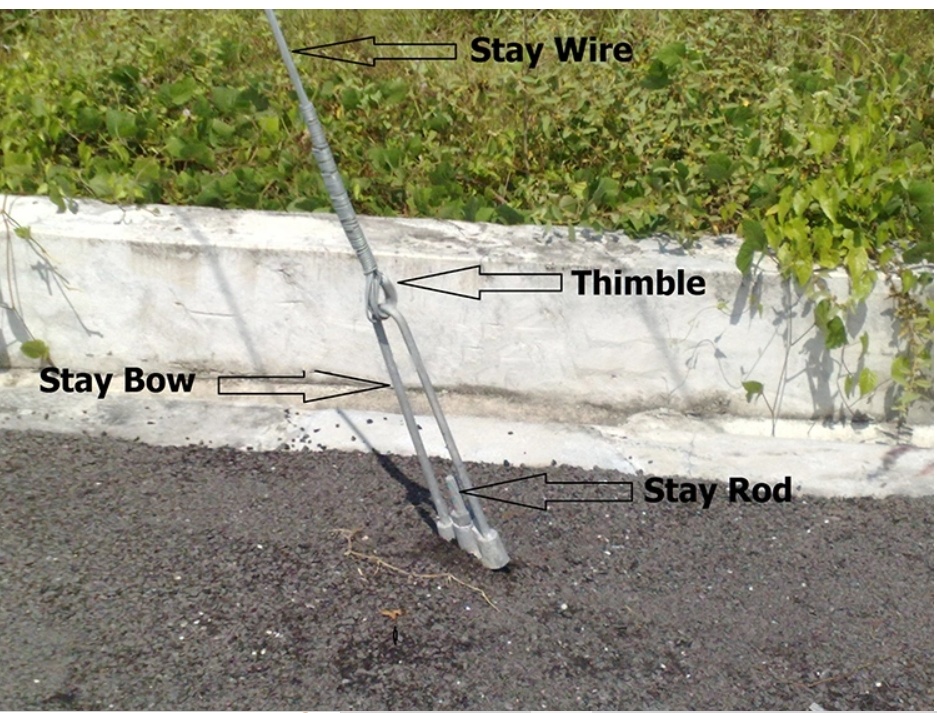

Handan Jinmai's adjustable pole assembly consists of a pole, a pole bow, a base plate and a sleeve. As shown in the figure, the use examples of each part play a supporting role in the power pole. It is an indispensable and important part, making the power pole more stable and firm, improving the safety of the pole, and making our life better.

The pole is the main infrastructure of the power system. It can connect wires in series and transmit electricity to where it is needed through the wires, and the adjustable pole is an important accessory to support the pole and the stability of the wires.

（二）Details

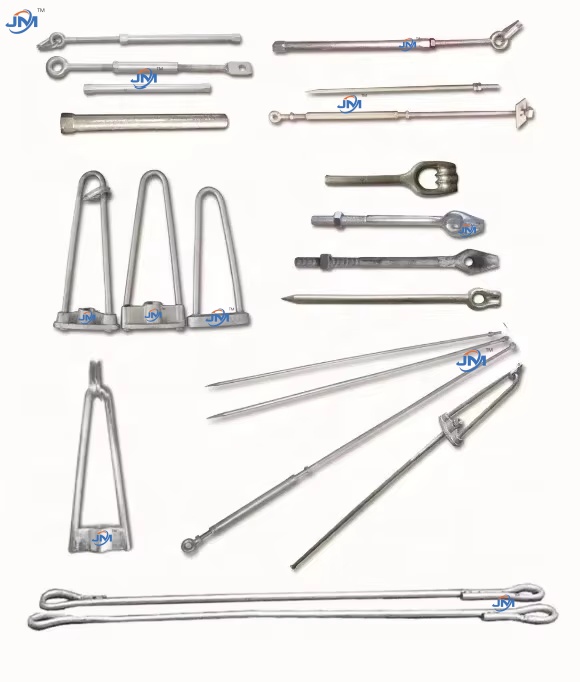

There are two main types of adjustable pole groups in application: bow poles and tubular poles.

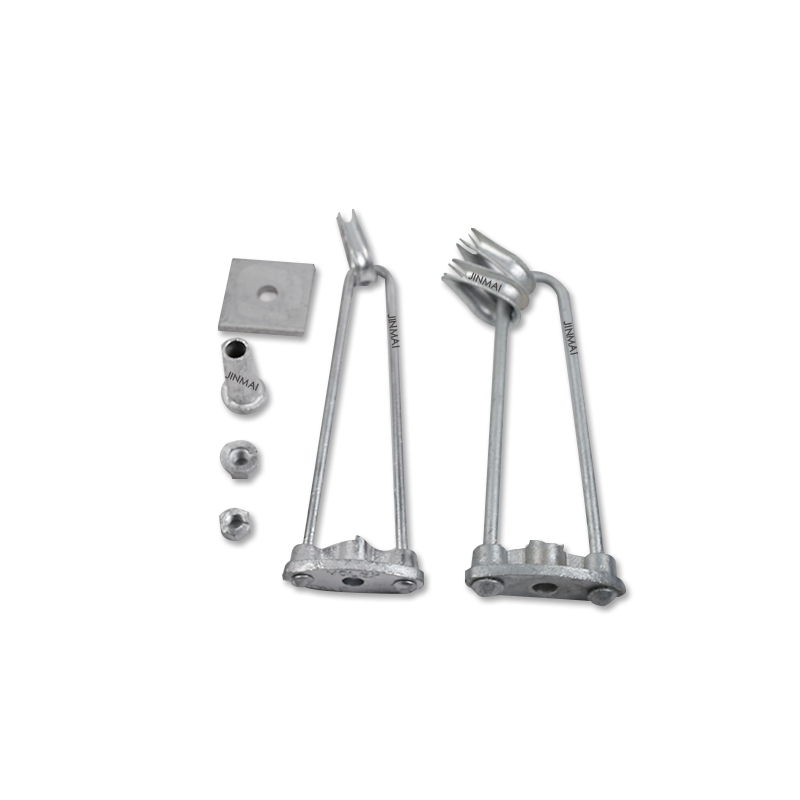

The first type of bow poles is further divided into components such as pole sleeves, poles and plates.

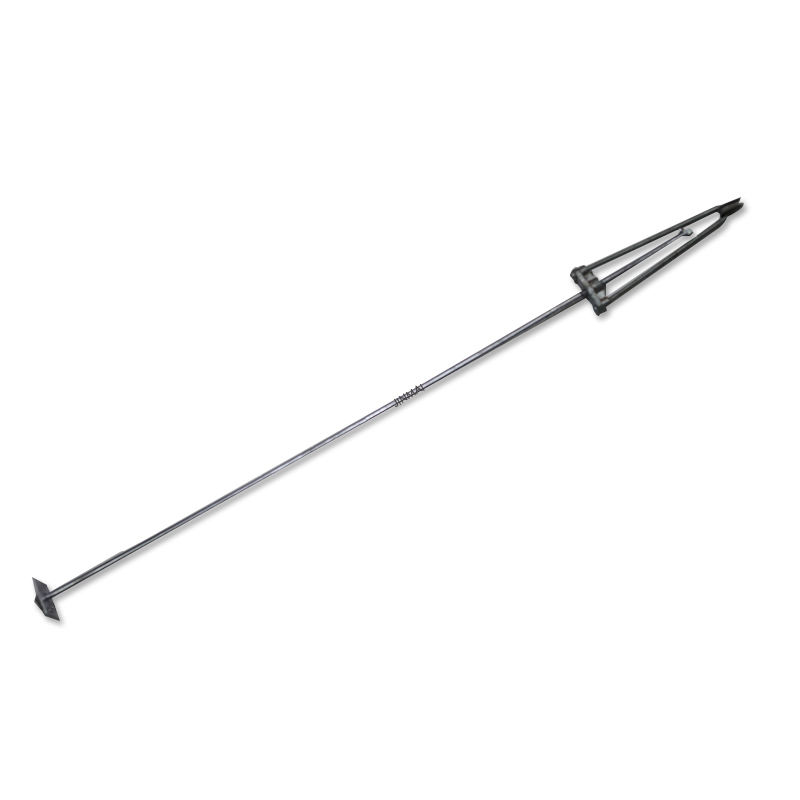

The second type of tubular poles can be adjusted by their turnbuckles, while the bow poles include additional components to increase flexibility and stability.

(三） Specifications

1.The available raw materials are: Q235B/Q275B/Q355B. Generally speaking, Q235B is sufficient for daily use.

2.Regarding product size, it can be customized and made according to customer requirements.

M12、M16、M18、M20、M22、M24.....

3.Made of hot-dip galvanized steel with a zinc thickness of more than 86 microns, ensuring quality and longevity.

（四）Why choose Handan Jinmai

Handan Jinmai Fastener Manufacturing Co., Ltd. was established in 2010 and specializes in the production of power fittings and pole and line fittings. It has exported to Italy, Malaysia, the Philippines, and Africa many times, including tie rods, crosspieces and other products. It provides a wide range of products for transmission lines and communication equipment, ensuring quality through advanced technology and equipment.

In summary, adjustable stay rod assemblies with bows, base plates and ejectors are essential for the stability and safety of power line systems. They are available in various designs and sizes.Contact me if you want to know more!
