guy clamp with there bolts

Guy clamp is a parallel groove clamp, which is usually used in communication and transmission lines. It is used in conjunction with guy wires and anchors to enhance the stability of telegraph poles. It is mainly used to fix guy wires and support cables. This product of Handan Jinmai is made of carbon steel and surface treated with hot-dip galvanizing. It is more cost-effective and durable.

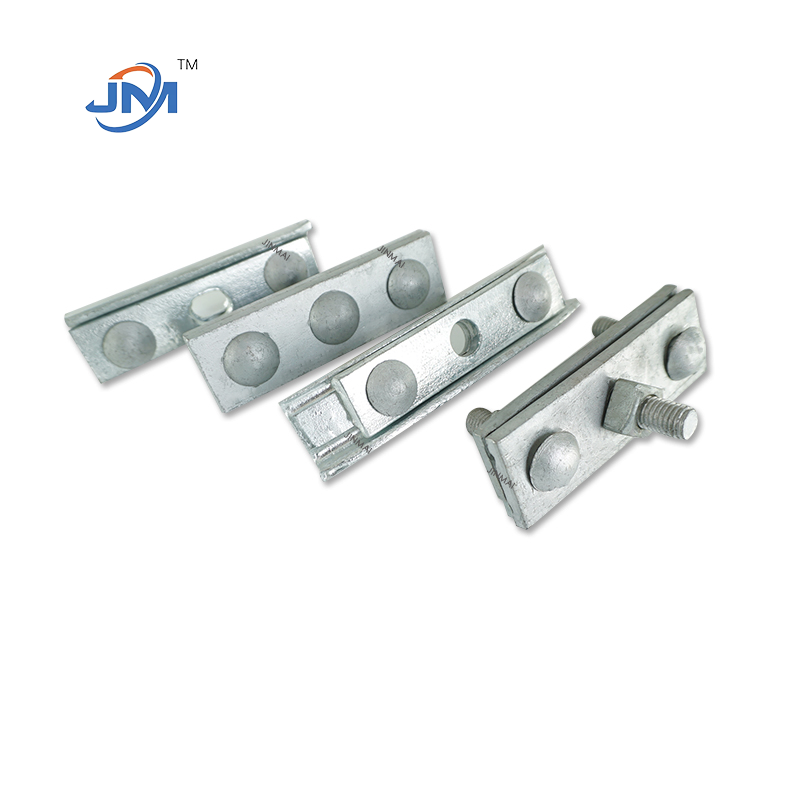

（one） As shown in the figure, its composition is:

1. Metal plate: It consists of two carbon steel metal plates of the same size.

2. Parallel groove: It is used to accommodate guy wires and prevent them from contacting.

3. Bolts and nuts (with flat washers): Two metal plates used to fix the clamp.

4. Special shoulders (optional): Prevent the clamp from turning when tightening the nut.

（two） Its main functions in the power industry are:

1. Fix guy wires: By clamping the guy wires, prevent them from moving or sliding.

2. Protect the wires: The parallel groove design of the clamp can protect the wires from mechanical and electrical damage.

3. Enhanced stability: Used in conjunction with guy wires and anchors to provide additional support for telegraph poles.

（three） Size selection

Generally, it can be divided into single-bolt clamp, double-bolt clamp, and three-bolt clamp according to the number of bolts

The appearance can be made into inclusive type, parallel type, etc. Handan Jinmai can customize the product according to your requirements.
