U-4 Triple Hanging Plate

U-4 Triple Hanging Plate , hanging plate consists of three parts--- U type shackle(U-4 ), PS parallel clevis(PS-7), and TK clevis Thimble ;

which are used to connect the corner fittings of the tensioning corner and terminal towers.

They are generally fixed at the corners, terminals, and tension towers of the optical cable line.

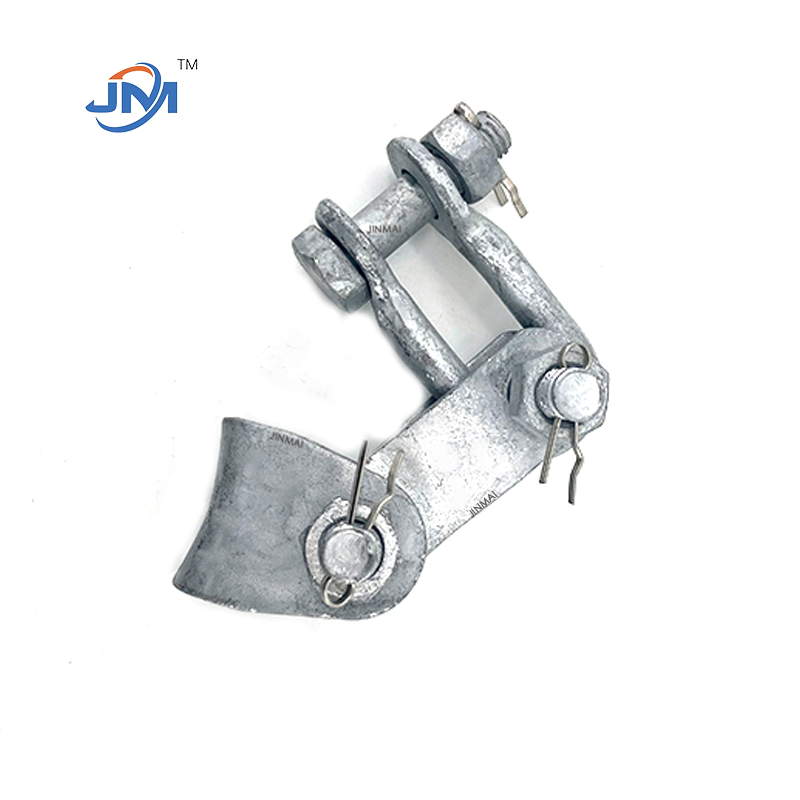

like the picture show(as a sample,there can be diffenert kinds)

This type of connecting fittings can be freely matched and combined, suitable for pre-twisted wires and cables of different cable diameters.

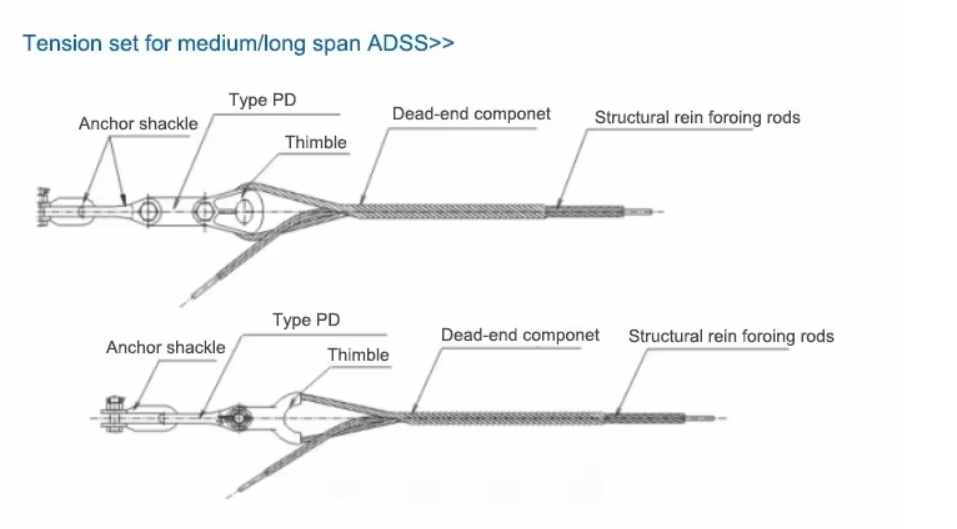

The specific application is shown in the figure below:

Actual application example diagram

shown,take a look,then you can know them well,then choose the right one

Product Specification Introduction:

The raw materials of the triple hanging plates are all carbon steel, with high structural strength and high cost performance; the bolt grade is 4.8, and if high standards are required, it can be replaced with 8.8 grade bolts;

The surface treatment is hot-dip galvanizing (electrogalvanizing is also optional), and the galvanizing treatment enhances the corrosion resistance of the product, thereby extending the outdoor use period (hot-dip galvanizing can generally last up to about 20 years, and electrogalvanizing is about 3 years);

Model: A variety of models are available, and the three parts can also be mixed with other products. The size and product components can be selected according to the cable of the connecting part.

Why choose Handan Jinmai:

1. Professional technical guidance, 14 years of manufacturing experience, can issue drawings according to the product;

2. Independent factory, strong monthly capacity, can ensure fast delivery;

3. With ISO9001 certificate, to ensure product quality.

Disassembly diagram introduction
