Complete knowledge about U-bolts

U-bolt (U Bolt) is a common fastener, also called U-shaped clamp or U-shaped bolt. It is a U-shaped threaded fastener that is used in power transmission lines, pole lines and Concrete poles play a key role in the line and are mainly used to stabilize utility poles and other related structures. They are shaped like the letter "U" and have threads on both ends, which can be used to fix or connect two or more components. The characteristic of a U-shaped bolt is that its middle part forms a U-shaped ring, which can be used to fix or support other objects to a certain position or structure.

U Bolt

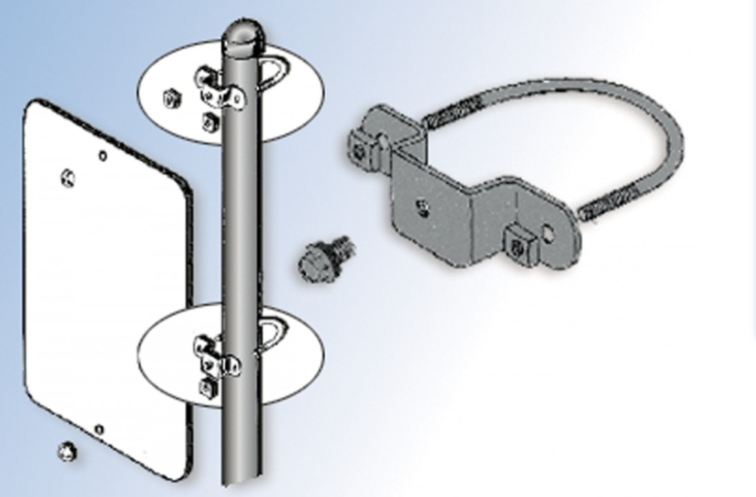

U-bolts are widely used. They can be used to fix pipes, beams, cable trays, mechanical equipment, etc. Due to their simple design and ease of installation, U-bolts are very popular in industry and construction. When installing, the U-shaped part of the U-bolt is usually placed on the object or structure that needs to be fixed, and then tightened in place with nuts and washers.

Types and uses of pole line hardware U Bolt

There are many types and main uses of U-bolts, which can be distinguished according to shape, size, material and application scenarios.

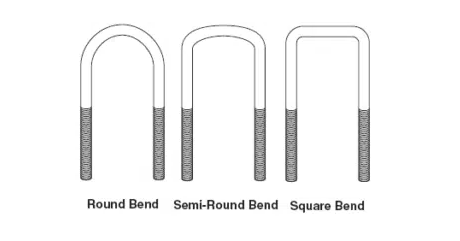

According to the application habits of different countries, U-shaped bolts have various design styles. For example, square and round U-bolts, U-bolts with clamping plates, and middle-wound U-bolts for fixing cross arms are all designed specifically for concrete poles. There is also a smaller version of the U-bolt, which is used in power transmission lines to connect ball sockets and tension clamps.

To ensure long-term durability and protection, the surface of U-bolts is usually hot-dip galvanized, forming a uniform and thick zinc layer that effectively isolates moisture and oxygen and prevents rust and corrosion.

U Bolt

In terms of manufacturing process, the threaded part of the U-shaped bolt is processed by advanced thread rolling machinery to ensure the accuracy and tightening force of the thread. Bolt diameters are available in a variety of options, including 1/2 inch, 5/8 inch, and 3/4 inch, to suit different installation needs and load conditions.

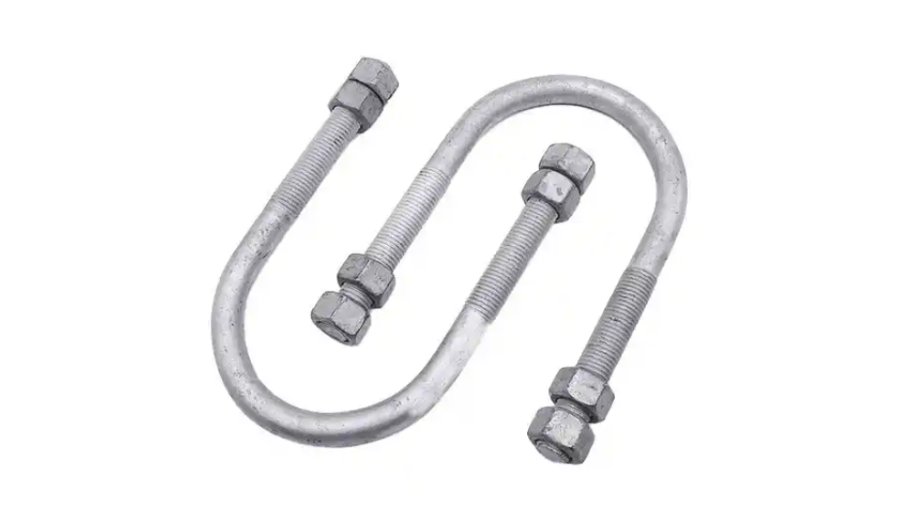

During the assembly process, each U-bolt is usually paired with two to four hexagonal or square nuts to ensure the stability and reliability of the installation. Through this combination, U-shaped bolts can provide solid fixed support for various structures and ensure the stable operation of power and communication facilities.

U Bolt

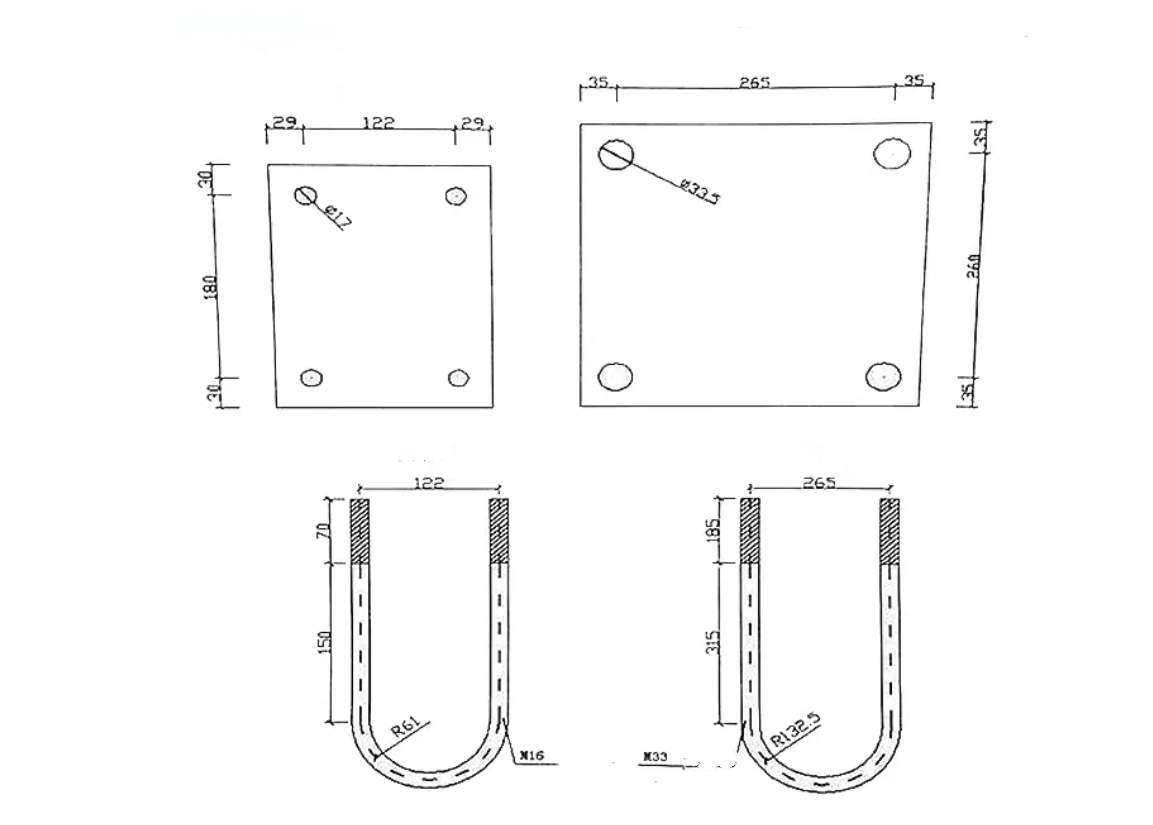

How to measure u bolts

Measuring U-bolts accurately is essential for ensuring the proper fit and function in their intended applications. Here's a step-by-step guide on how to measure U-bolts for various dimensions:

• Thread Size:

  Measure the Diameter: Use a caliper or a micrometer to measure the diameter of the threaded part of the U-bolt. This will give you the size of the threads (e.g., 1/2", 5/8", 3/4").

  Check the Thread Pitch:

  For a more precise measurement, you can also measure the thread pitch (distance between threads) with a thread pitch gauge or by counting the threads over a known distance.

• U-Bolt Length:

  Measure the Straight Section: Using a ruler or a tape measure, measure the length of the straight section of the U-bolt, which is the distance from one end of the U to the other end.

• Include the Threaded Ends:

  If the ends of the U-bolt are threaded, make sure to include the length of the threads in your measurement.

• U-Bend Diameter:

  Measure the Inner Diameter: Use a caliper or a micrometer to measure the inner diameter of the U-bend. This is the distance between the two arms of the U-bolt at their closest point.

  Measure the Outer Diameter: If the U-bolt has a specific outer diameter that needs to be measured (e.g., for clearance purposes), you can measure this with a caliper or a ruler.

• Leg Length:

  Measure Each Leg: If the U-bolt has legs that extend from the U-bend, measure the length of each leg separately.




• Tips for Measuring:

  Use Precise Tools: For the most accurate measurements, use high-quality measuring tools.

By accurately measuring these dimensions, you can ensure that the U-bolts you select or purchase will fit correctly in their intended applications, providing the necessary structural support and preventing any issues related to improper sizing.

U bolt

How strong are u bolts

The maximum load-bearing capacity of a U-bolt depends on its material and size. Generally speaking, the maximum load-bearing capacity of U-bolts can be determined by calculating their tensile capacity. This requires understanding the tensile strength of the U-bolt material and some simple math.

Calculation method: First determine the cross-sectional area of the bolt, then multiply the tensile strength of the material by the cross-sectional area, and then multiply by a factor (usually 0.56) to distinguish between shear capacity and tensile capacity. This calculation can help determine the maximum load-bearing capacity of U-bolts.

Therefore, to determine the specific maximum load capacity of a U-bolt, its specific materials, dimensions, and design criteria need to be considered.

U bolt

Quality compliance – ISO 9001

ISO 9001 is an international standard for Quality Management Systems (QMS) published by the International Organization for Standardization (ISO). It is one of the core standards within the ISO 9000 family of standards, designed to help organizations ensure that their products and services meet customer and regulatory requirements while continuously improving customer satisfaction and organizational performance.

The core content of ISO 9001 includes the following aspects:

• Understanding the Organizational Environment: Organizations need to comprehend their internal and external environments, including the needs and expectations of stakeholders, and how these factors impact the organization's operations and strategic direction.




• Leadership: Top management is required to demonstrate leadership to ensure that the organization's quality objectives align with its overall objectives and to support the QMS through the allocation of resources and the assignment of responsibilities.




• Planning: Organizations need to plan how to achieve their quality objectives, including identifying risks and opportunities, setting quality goals, and planning for change management.




• Support: Organizations should ensure the availability of adequate resources, including human resources, infrastructure, the environment for the operation of processes, monitoring and measurement resources, and organizational knowledge, to support the effective operation of the QMS.




• Operation: Organizations need to plan and control the operation of their products and services, including customer communication, determination of product and service requirements, design and development, control of externally provided processes, and production and service provision.




• Performance Evaluation: Organizations need to monitor, measure, analyze, and evaluate the performance of their processes and products to ensure the achievement of quality objectives and as a basis for continuous improvement.




• Continuous Improvement: Organizations should continuously seek opportunities for improvement, including the implementation of nonconformities and corrective actions, as well as the management review process, to ensure the ongoing suitability, adequacy, and effectiveness of the QMS.

Frequently Asked Questions (FAQs)

Conclusion

The threads of U-bolts are made by a thread rolling machine. Bolt diameters are available in 1/2-inch, 5/8-inch, and 3/4-inch sizes. As an ISO certified manufacturer, supplier and exporter, Jinmai Fastener is able to customize sizes and design new products according to customer drawings or specific requirements.

Jinmai Fasteners specializes in the production of accessories for the power industry and exports to global regions all year round. Welcome to inquire and visit the factory.
